SINUMERIK 840DSL

SINUMERIK 840DSL

3 X CONTROLLER VARIATIONS


SINUMERIK 840 - the open CNC for modular machine concepts

The SINUMERIK 840D sl offers the absolute maximum in terms of openness and flexibility. This makes the SINUMERIK 840D sl the optimum CNC for machines whose mechanical design must be individually adapted to address the requirements of individual users.

The SINUMERIK 840D sl CNC offers modularity, openness, flexibility and uniform structures for operation, programming, and visualization. It provides a system platform with trend-setting functions for almost all technologies.

Integrated into the SINAMICS S120 drive system and complemented by the SIMATIC S7-300 automation system, the SINUMERIK 840D sl forms a complete digital system that is ideally suited for the mid to upper performance range.

The SINUMERIK 840D sl is characterized by:

  • A high degree of flexibility
  • Excellent dynamic response and precision
  • Optimum integration into networks

​


  • Outstanding performance and flexibility for multi-axis systems of average to high complexity thanks to scalable hardware and software
  • Universal openness of the user interface, the PLC and the NCK area to allow integration of your specialist know-how
  • Integrated safety functions for man and machine: SINUMERIK Safety Integrated
  • Comprehensive range of products for integrating machine tools into communication, engineering and production processes: SINUMERIK Integrate

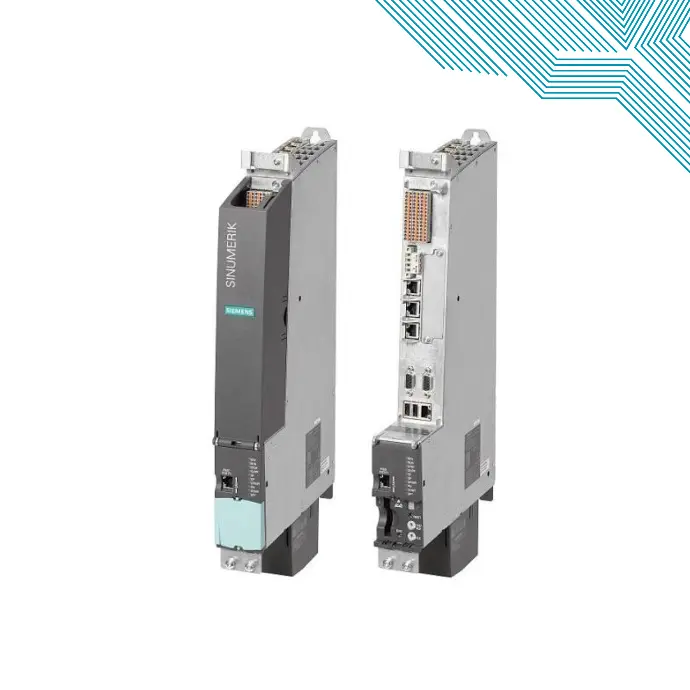

6FC5371-0AA30-0AB0

SINUMERIK 840D SL NCU 710.3B PN WITH PLC 317-3 PN/DP INCL. DUAL FAN/BATTERY MODULE AND BATTERY


6FC5372-0AA30-0AB0

SINUMERIK 840D SL NCU 720.3B PN WITH PLC 317-3 PN/DP INCL. DUAL FAN / BATTERY MODULE AND BATTERY


6FC5373-0AA30-0AB0

SINUMERIK 840D SL NCU 730.3B PN WITH PLC 317-3 PN/DP INCL. DUAL FAN / BATTERY MODULE AND BATTERY




Application

The SINUMERIK 840D sl can be deployed around the world for the following technologies:


  • Turning
  • Drilling
  • Milling
  • Grinding
  • Laser machining
  • Nibbling
  • Punching
  • Tool and mold making
  • High-speed cutting applications
  • Woodworking and glass processing
  • Handling
  • Transfer lines
  • Rotary indexing machines
  • Mass production
  • JobShop production

The SINUMERIK 840DE sl is available as an export version for use in countries where approval is required.
