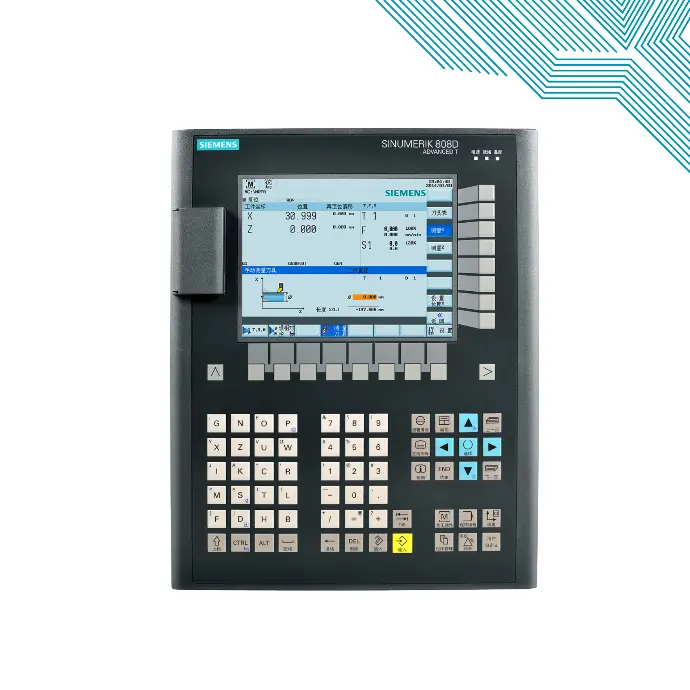

2 operator panel variants for horizontal and vertical operator panel housings
IP65 protection for CNC front panel and machine control panel
Integrated CNC keyboard with mechanical keys
Simplified Chinese or English panel layout
8.4” color LCD display
USB user interface on the operator panel front
Drive bus interface for feed drives and spindle
Analog ±10 V interface for spindle drive
Data buffering without battery
Pre-configured system software for turning and milling technologies
Up to 6 axes/spindles (up to 4 axes/spindle for PPU 15x.3)
Automatic servo tuning AST
Ethernet interface for commissioning and data transfer
Graphically guided SINUMERIK CNC programming and standard ISO-code programming with canned cycles
Graphical CNC simulation
Integrated contour computer
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
Integrated/distributed PLC I/O concept with 72 digital PLC inputs and 48 digital PLC outputs
CNC options subject to license
Customized user screens
Machine maintenance tasks are accomplished by integrated service planner
Compact, rugged, and maintenance-friendly operator-panel CNC
Actual position feedback to CNC
Intelligent clamp mounting without drilling holes into the cabinet
Minimum commissioning efforts due to plug and play machine control panel connected via USB interface
Direct commissioning on HMI for feed drives and automatic servo tuning AST
Maximum performance and accuracy due to most modern CNC features
SINUMERIK 808D startGUIDE: assists all process steps of the machine - from engineering to production, from sales to operation and programming at the push of a button
SINUMERIK Operate BASIC: maximum operator convenience similar to SINUMERIK 828D and SINUMERIK 840D sl
SINUMERIK programGUIDE BASIC: wide range of technology cycles for turning, milling and drilling with graphical input screens
Manual Machine plus: easy semi-automatic machining with handwheel controlled flat-bed lathes (only for turning)
Fast data transmission via USB stick and high-speed Ethernet interface
More software options can cover more applications and enhance the machine performance
Maximum performance and accuracy due to the Advanced Surface function (only for PPU 16x.3 milling)
