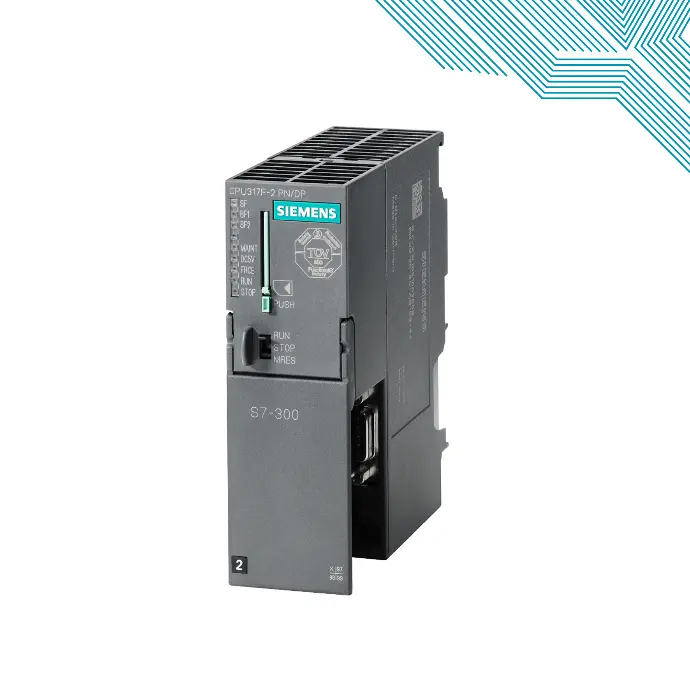

Function
Password protection;
a password concept protects the user program from unauthorized access.
Block encryption;
the functions (FCs) and function blocks (FBs) can be stored in the CPU in encrypted form by means of S7-Block Privacy to protect the know-how of the application.
Diagnostics buffer;
the last 500 error and interrupt events are stored in a buffer for diagnostic purposes, of which 100 are stored retentively.
Maintenance-free data backup;
retentive data is automatically backed up by the CPU if the voltage is interrupted and is available unchanged after the voltage has been reconnected.
Parameterizable properties
The S7 configuration as well as the properties and response of the CPUs can be parameterized using STEP 7:
General;
definition of the name, plant identifier and location ID. Parameter assignment of the multi-point interface MPI: Determining node addresses
Startup;
definition of the startup characteristics of the CPU and the monitoring time
Cycle/clock memory;
specification of the maximum cycle time and load. Setting of the clock memory address.
Retentivity;
definition of the number of retentive bit memories, counters, timers and data blocks
Clock interrupts;
setting of start date, start time and periodicity
Watchdog interrupts;
setting of periodicity
System diagnostics;
determining handling and scope of the diagnostic alarms
Clock;
setting of the synchronization method in the AS or on the MP
Protection level;
specifying the access rights to program and data
Communication;
reservation of connection resources
Display and information functions
Status and error indications;
LEDs indicate e.g. hardware, programming, time or I/O errors, as well as operating states such as RUN, STOP and start-up.
Test functions;
the PG is used to indicate signal states during program execution, to modify process variables independently of the user program and to output the contents of stack memories.
Information functions;
you can use the PG to obtain information about the storage capacity and operating mode of the CPU as well as the current loading of the main and load memories as well as current cycle times and diagnostic buffer contents in plain text.
Integrated communication functions
PG/OP communication
Global data communication
S7 basic communication
S7 communication (server only)
System functions
The CPU provides many extensive system functions for diagnostics, parameterization, synchronization, alerting, time measurement, etc.
For detailed information, refer to the menu
