Siemens SIMATIC S7 1511

Modular, scalable, and universally usable system in IP20 level of protection

The system solution for a variety of automation applications

Modular, scalable, and universally usable system in IP20 level of protection

The system solution for a variety of automation applications

Highest performance with excellent usability

Configurable exclusively in the Totally Integrated Automation Portal with STEP 7 Professional V12 or higher

Advanced Controllers automate not only complete production plants, but also applications which demand the greatest performance, flexibility and networking capability. Sophisticated motion control tasks are implemented with the technology CPU.

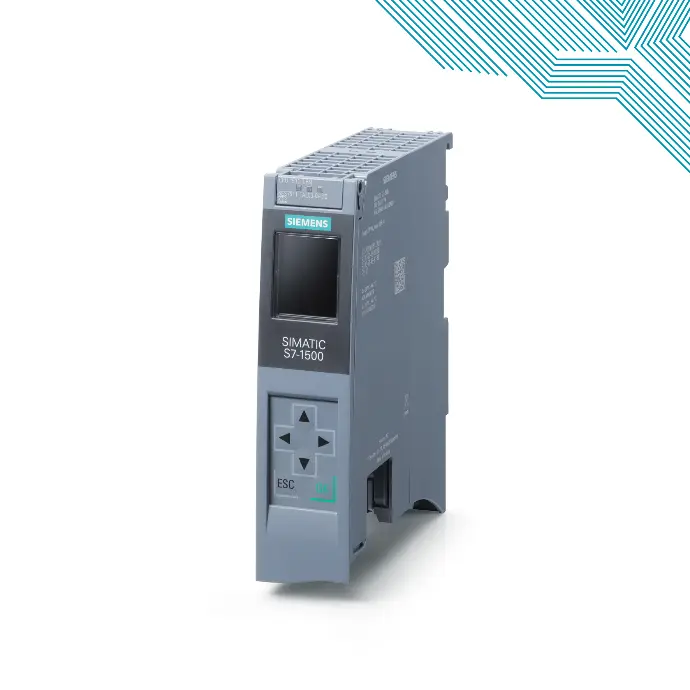

Siemens SIMATIC CPU 1511-1 PN KG RGB

A powerful processor:

The CPU achieves command execution times as low as 60 ns per binary instruction.

A large work memory:

150 KB for program, 1 MB for data

SIMATIC Memory Cards as load memory;

permit additional functions such as datalog and archives

Flexible expansion capability:

single-tier configuration with max. 32 modules (CPU + 31 modules)

Display with functions for:

  •     Display of overview information such as IP address of the integrated interface, station name, higher level designation, location designation, etc.,
  •     Display and acknowledgment of diagnostic and user messages
  •     Display of module information
  •     Display of a user-definable logo
  •     Showing display settings
  •     Setting of IP addresses
  •     Setting of date and time
  •     Selection of the operating mode
  •     Resetting of the CPU to factory settings
  •     Backup and restoring of the project
  •     Disabling/enabling of the di

The following CPU’s are available

Standard - 1511-1 PN, 1513-1 PN, 1515-2 PN, 1516-3 PN/DP, 1517-3 PN/DP, 1518-4 PN/DP, 1518-4 PN/DP ODK

Siplus – 1511-1 PN, 1513-1 PN, 1516-3 PN/DP, 1518-4 PN/DP

Compact – 1511C-1 PN, 1512C-1 PN

Fail Safe – 1511F-1 PN, 1513F—1 PN, 1515F-2 PN, 1516F-3 PN/DP, 1517F-3 PN/DP, 1518F-4 PN/DP ODK

Siplus Fail Safe – 1511F-1 PN, 1513F-1 PN, 1515F-2 PN, 1516F-3 PN/DP, 1518F-4 PN/DP

Technology – 1511T-1 PN, 1511TF-1 PN, 1515T-2 PN, 1515TF-2 PN, 1516T-3 PN/DP, 1516TF-3 PN/DP, 1517T-3 PN/DP, 1517TF-3 PN/DP


8 X STANDARD CPU'S

CPU 1511-1PN; 6ES7511-1AK02-0AB0

CPU 1513-1PN; 6ES7513-1AL02-0AB0

CPU 1515-2PN; 6ES7515-2AM01-0AB0

CPU 1516-3PN/DP; 6ES7516-3AN01-0AB0

CPU 1517-3PN/DP; 6ES7517-3AP00-0AB0

CPU 1518-4PN/DP; 6ES7518-4AP00-0AB0

CPU 1518-4PN/DP ODK; 6ES7518-4AP00-3AB0

CPU 1518-4PN/DP MFP; 6ES7518-4AX00-1AC0


5 X SIPLUS CPU'S

SIPLUS CPU 1511-1 PN; 6AG1511-1AK01-7AB0

SIPLUS CPU 1513-1 PN; 6AG1513-1AL01-7AB0

SIPLUS CPU 1516-3 PN/DP; 6AG1516-3AN01-2AB0

SIPLUS CPU 1516-3 PN/DP; 6AG1516-3AN01-7AB0

SIPLUS CPU 1518-4 PN/DP; 6AG1518-4AP00-4AB0


2 X STANDARD CPU'S

CPU 1511C-1PN; 6ES7511-1CK01-0AB0

CPU 1512C-1PN; 6ES7512-1CK01-0AB0


8 X FAIL SAFE CPU'S

CPU 1511F-1PN; 6ES7511-1FK02-0AB0

CPU 1513F-1PN; 6ES7513-1FL02-0AB0

CPU 1515F-2PN; 6ES7515-2FM01-0AB0

CPU 1516F-3PN/DP; 6ES7516-3FN01-0AB0

CPU 1517F-3PN/DP; 6ES7517-3FP00-0AB0

CPU 1518F-4PN/DP; 6ES7518-4FP00-0AB0

CPU 1518F-4PN/DP ODK; 6ES7518-4FP00-3AB0

CPU 1518F-4PN/DP MFP; 6ES7518-4FX00-1AC0


5 X SIPLUS FAIL SAFE CPU'S

SIPLUS CPU 1511F-1 PN; 6AG1511-1FK01-2AB0

SIPLUS CPU 1513F-1 PN; 6AG1513-1FL01-2AB0

SIPLUS CPU 1515F-1 PN; 6AG1515-2FM01-2AB0

SIPLUS CPU 1516F-3 PN/DP; 6AG1516-3FN01-2AB0

SIPLUS CPU 1518F-4 PN/DP; 6AG1518-4FP00-4AB0


3 X REDUNDANT CPU'S

CPU 1513R-1 PN; 6ES7513-1RL00-0AB0

CPU 1515R-2 PN; 6ES7515-2RM00-0AB0

CPU 1517H-3PN; 6ES7517-3HP00-0AB0


8 X TECHNOLOGY CPU'S

CPU 1511T-1PN; 6ES7511-1TK01-0AB0

CPU 1511TF-1 PN; 6ES7511-1UK01-0AB0

CPU 1515T-2 PN; 6ES7515-2TM01-0AB0

CPU 1515TF-2 PN; 6ES7515-2UM01-0AB0

CPU 1516T-3 PN; 6ES7516-2TN00-0AB0

CPU 1516TF-3 PN; 6ES7516-2UN00-0AB0

CPU 1517T-3 PN/DP; 6ES7517-3TP00-0AB0

CPU 1517TF-3 PN/DP; 6ES7517-3UP00-0AB0
