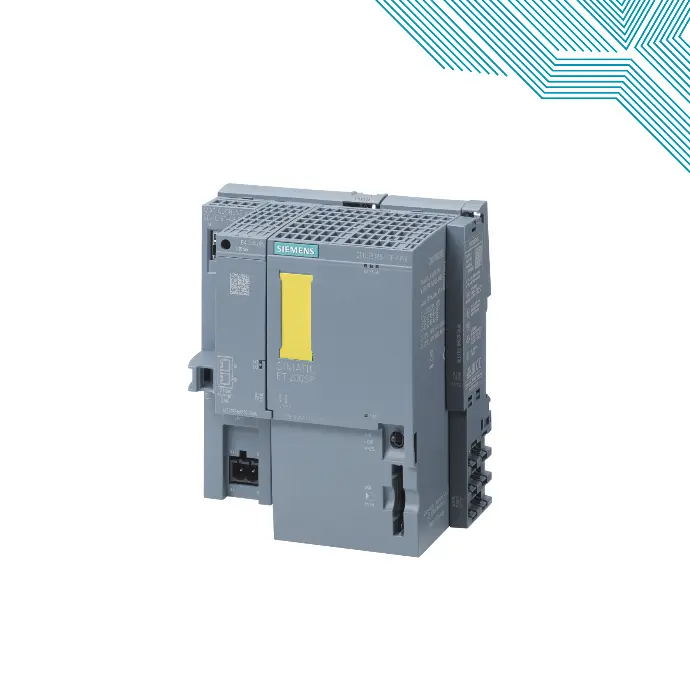

The SIMATIC ET 200SP based distributed controller
The distributed controllers ET 200SP CPUs combine compactness and flexibility. Especially in the medium performance range for machines with distributed intelligence or series machines with limited space, the distributed controllers are the perfect solution for standard and fail-safe applications.
The CPUs have the same functionalities as the CPU 1511 / CPU 1513 of the S7-1500 controller family, such as the CPU. For example, the integrated trace function, integrated system diagnostics, integrated security, web server or full symbolic programming.
Thanks to the I-Device functionality, the connection to a higher-level CPU can be carried out in exactly the same way as with a standard interface module. The ET 200SP station is distinguished by a noise-resistant design thanks to short signal and encoder wiring and low wiring effort.
The CPUs support additional functions such as PROFIenergy, isochronous mode, configuration control (option handling) and DP master.
Standard CPUs - CPU 1510SP-1 PN and CPU 1512SP-1 PN
Two interface modules with integrated CPU and PROFINET connection are available for SIMATIC ET 200SP.
With the 3 integrated Ethernet ports, the connection adapters can be flexibly selected with the bus adapters. The CPUs can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device) in the discrete manufacturing technology.
The 151xSP CPUs can be expanded with ET 200SP standard modules as well as decentrally via PROFINET with any ET 200 systems.
The integrated PROFINET IO IRT interface is designed as a 3-port switch so that a line structure can be established in the plant via ports 1 and 2 and also a PG / PC or HMI device can be connected via port 3.
Failsafe CPUs - CPU 1510SP F-1 PN and CPU 1512SP F-1 PN
The failsafe ET 200SP CPUs enable standard and safety program processing. They are certified to EN 61508 (2nd Edition) for Functional Safety and are suitable for use in safety-related applications up to SIL 3 according to IEC 62061 and PL e according to ISO 13849.
The 151xSP F CPUs can be expanded with ET 200SP standard and fail-safe modules as well as decentrally via PROFINET / PROFIsafe with any ET 200 systems.
For IT security, additional password protection has been set up for F configuration and F program. The CPUs can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device) in discrete manufacturing technology. The integrated PROFINET IO IRT interface is designed as a 3-port switch so that a line structure can be established in the plant via ports 1 and 2 and also a PG / PC or HMI device can be connected via port 3.
