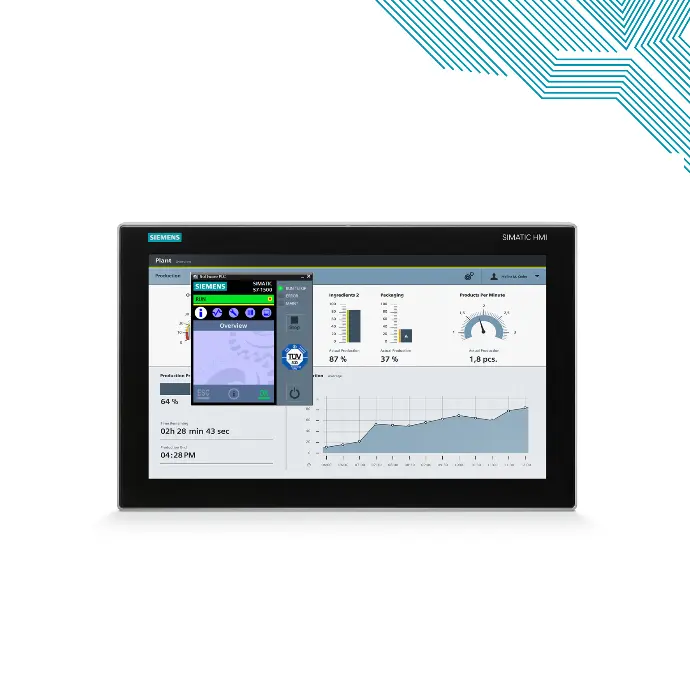

Siemens PC HMI software

WinCC TIA Portal Runtime or Professional (SCADA) Visualisation software


PC based visualisation software with scale-able optiuons depending on technical requirements

Siemens PC HMI software

SIMATIC WinCC Runtime Advanced visualization software

  • PC-based operator control and monitoring solution for single-user systems directly at the machine
  • Basic package for visualization, reporting and logging, user administration, can be expanded flexibly with VB scripts
  • Basic package expandable by means of option packages
  • Can be integrated into automation solutions based on TCP/IP networks
  • Expanded service concepts with remote operation, diagnostics and administration over the intranet and Internet in combination with email communication



SIMATIC WinCC Runtime Professional visualization software

  • PC-based operator control and monitoring system for visualization and operator control of processes, production flows, machines and plants in all sectors – from the simple single-user station through to distributed multi-user systems and cross-location solutions with web clients. WinCC Runtime Professional is the information hub for corporation-wide vertical integration.
  • Industry-standard functions for signaling and acknowledging events, archiving of messages and measured values, logging of all process and configuration data, user administration, can be expanded flexibly with VB and C scripts
  • Basic package expandable by means of option packages
  • Also included are APIs for the Runtime to utilize the open programming interfaces

For more detailed information, refer to:

    • Functions for all visualization tasks:
      • Operator functions
      • Graphics and trend displays
      • Alarm logging
      • Report system
      • Archiving (option)
      • Recipe management (option)
      • Audit Trail (option)
    • Flexible runtime functionality due to Visual Basic scripts
    • Service concepts with remote operation, diagnostics and administration via intranet/Internet as well as email communication increase availability (option)
    • Support for simple distributed automation solutions based on TCP/IP networks at the machine-level (option)
    • Part of the Totally Integrated Automation Portal
      • Direct access to the tag and message configuration of the SIMATIC controller
      • Excellent support of the new SIMATIC S7-1500 controller
        With symbolic addressing
        Access to the new memory-optimized data blocks
        New alarm and diagnostics concept (incl. ProDiag)
      • Integrated diagnostic functions for increasing productivity

6AV2104-0....-....

SIMATIC WinCC Runtime Advanced is the high-performance visualization software for simple, machine-oriented visualization tasks. It can be used as a single-user solution for all automation applications in production automation, process automation and building services automation.

SIMATIC WinCC Runtime Advanced can be used in combination with the following operator panels:

  • SIMATIC Rack PC

      IPC347, IPC547, IPC647, IPC847

  • SIMATIC Box PC:
    • IPC227, IPC427, IPC627, IPC827
  • SIMATIC Panel PC:
    • IPC277, IPC477, IPC677, Panel PC Ex OG
  • SIMATIC S7 Open Controller: ET 200SP Open Controller
  • SINUMERIK PC: PCU 50.3, PCU 50.5
  • Standard PCs with resolutions (W x H in pixels) of:
    • 4:3 format: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200

Widescreen format: 800 x 480, 1280 x 800, 1366 x 768, 1440 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1980 x 1080
