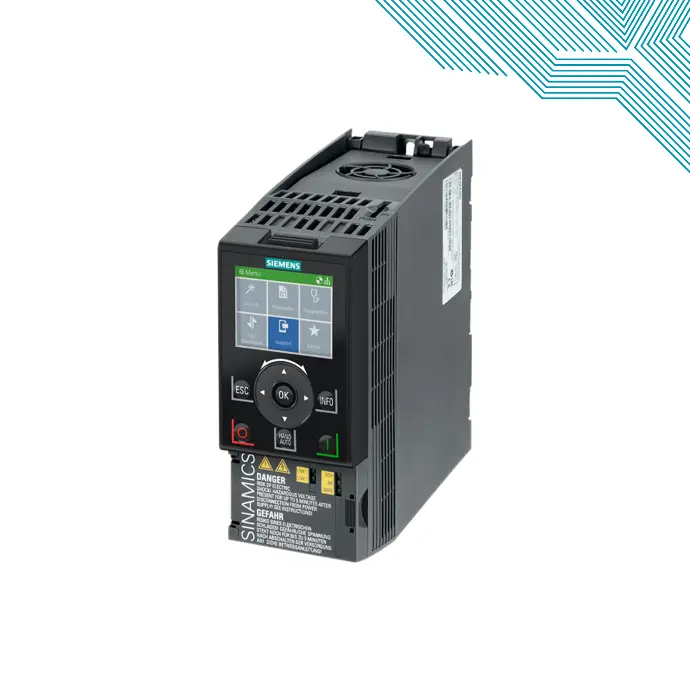

Siemens SINAMICS G120C

For continuously control of three-phase asynchronous motors. The G120C is designed for Basic and Medium Continuous motion applications as well as Basic Non-continuos motion applications including, Pumping (Centrifugal pumps), Ventilation(Radial / Axial fans), Compressing(Compressors), Moving applications(Conveyor belts, Roller conveyors, Chain conveyors) and Processing (Mills, Mixers, Kneaders, Crushers, Agitators, Centrifuges)

SINAMICS G120C compact converters offer a well-balanced combination of features to address a wide range of applications. They are compact, rugged devices that are easy to operate and can be optionally equipped with a basic or advanced operator panel.

SINAMICS G120C converters are especially suitable when it comes to meeting the requirements of system integrators, OEMs and distributors regarding high productivity and tailored performance.

SINAMICS G120C

SINAMICS G120C can be integrated into the widest range of applications, either using the integrated digital and analog inputs or via the integrated fieldbus interface (available in USS, Modbus RTU, PROFIBUS, PROFINET, EtherNet/IP versions). Especially the product versions with integrated PROFIBUS/PROFINET interface make full integration into the Siemens TIA family possible, therefore allowing the advantages of the seamless TIA product family to be fully utilized. SINAMICS G120C devices are preset in the factory so that they can be immediately connected to PROFIBUS or PROFINET fieldbus systems without parameterization.

Wireless commissioning, operation and diagnostics via mobile device or laptop thanks to the optional web server module SINAMICS G120 Smart Access enabling user-friendly operation and easy access to the converter, even if this is installed in areas difficult to access.

SINAMICS G120C is also equipped with the safety function STO (Safe Torque Off) as standard, which is used to safely stop drives. As a consequence, machine manufacturers can simply comply with current machinery directives with minimum associated costs.

SINAMICS G120C can control asynchronous (induction) motors in the power range from 0.37 kW up to 132 kW (0.5 hp to 200 hp). Reliable and efficient motor operation is achieved by using state-of-the-art IGBT technology combined with vector control. The extensive range of functions integrated in the SINAMICS G120C also offers a high degree of protection for the converter and motor.

    • Compact design
    • Frame size FSAA allows easy DIN rail mounting
    • Side-by-side design
    • High power density, low envelope dimensions
    • Simple installation in the tightest space
    • Low space requirement
    • Use in small control cabinets, close to the machine
    • Optimized parameter set
    • Optimized commissioning
    • Compact Operating Instructions
    • BOP‑2 or IOP‑2 operator panels can be used
    • Integrated USB connection
    • Simple and fast software parameter assignment
    • Simple to use during commissioning and in operation
    • Minimized training costs, existing SINAMICS know-how can be used
    • High degree of service friendliness, simple maintenance
    • Plug-in terminals
    • Cloning function using BOP‑2, IOP‑2, or memory card
    • Operating hours counter for "drive on" and "motor on"
    • Fast mechanical installation
    • Intuitive standard commissioning
    • Component of Totally Integrated Automation
    • Energy-efficient, sensorless vector control
    • Automatic flux reduction with V/f ECO
    • Integrated energy saving computer
    • Safety Integrated (STO)
    • • Communication versions with PROFINET / EtherNet/IP, PROFIBUS DP, USS/Modbus RTU
    • Wireless commissioning, operation and diagnostics via mobile device or laptop thanks to the optional SINAMICS G120 Smart Access
    • Coated modules
    • Operation up to an ambient temperature of 60 °C

6SL3210-1KE..-....
