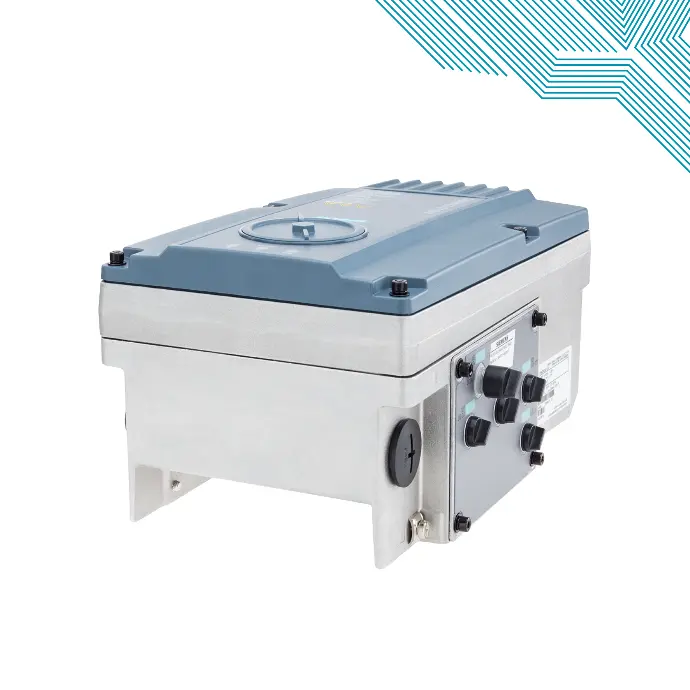

Siemens SINAMICS G110M

Distributed infrastructure drive


The SINAMICS G110M distributed frequency converters are the solution for drive tasks in which a motor integrated frequency converter is required. With different device versions (frame sizes FSA to FSB) in a power range from 0.37 kW to 4 kW, the SINAMICS G110M is suitable for a wide variety of drive solutions. SINAMICS G110M supports continuous speed control of three-phase asynchronous motors and fulfills all the requirements of conveyor system applications from simple speed control through to demanding sensorless vector control. It can be integrated seamlessly into the system thanks to its compact design in IP65/IP66 degree of protection.

Siemens SINAMICS G110M

Through the integrated functions such as Quick Stop and the limit switch function, the SINAMICS G110M is particularly suited for conveyor system applications.

For applications that require safety engineering, the SINAMICS G110M has the integrated STO function (Safe Torque Off 1)), which can be implemented without further external components. Integration via PROFINET, PROFIBUS, Ethernet/IP, Modbus RTU, AS-Interface or USS into a higher-level SIMATIC controller is very easy thanks to complete TIA Portal integration 1) – one tool and one operating and data storage concept.

  • Fast commissioning
    • Preconfigured with SIMOGEAR
    • Loop-through of 24 V DC and 400 V 3 AC and communication – no T-distributors necessary
    • Internal braking resistors - typical applications can be implemented without external braking resistors
    • Rugged, with IP65/66 degree of protection, up to 55 °C ambient temperature
    • Commissioning via fieldbus or on site via standard USB interface/optical interface for IOP‑2 Handheld
  • Fast commissioning on site
    • Local commissioning via DIP switch and potentiometer, standard USB interface, or IOP‑2 Handheld Intelligent Operator Panel.
    • Plug-in connections for 400 V 3 AC and 24 V DC, plug-in I/Os and communication
    • Local diagnostics with LEDs
    • Uploading, saving and cloning of parameters with SINAMICS SD card and IOP‑2 Handheld Intelligent Operator Panel
  • Full functionality
    • Integrated safety functions (STO locally via F-DI or via PROFIsafe)
    • PROFINET communication to PROFIBUS at no extra cost
    • Integrated communication: USS, Modbus RTU, PROFIBUS, PROFINET / EtherNet/IP and AS-Interface
    • Basic PLC functions and additional conveyor technology functions
    • I/Os can be used as distributed I/Os of the PLC
  • Efficient engineering
    • Fully integrated in Totally Integrated Automation, Totally Integrated Automation Portal and Integrated Drive System
    • Automatic diagnostics in combination with SIMATIC controller
  • Flexible commissioning
    • Integrated, specific software functionality for conveyor systems:
      • Quick Stop function for fast response times for the sensors, e.g. roller conveyor, belt conveyor
      • Limit switch functionality, e.g. for rotary table, corner transfer unit
    • Use of the same software tools (STARTER and SINAMICS Startdrive) as for all SINAMICS drives

6SL3517-1BE..-...

  Modular conveyor installations
