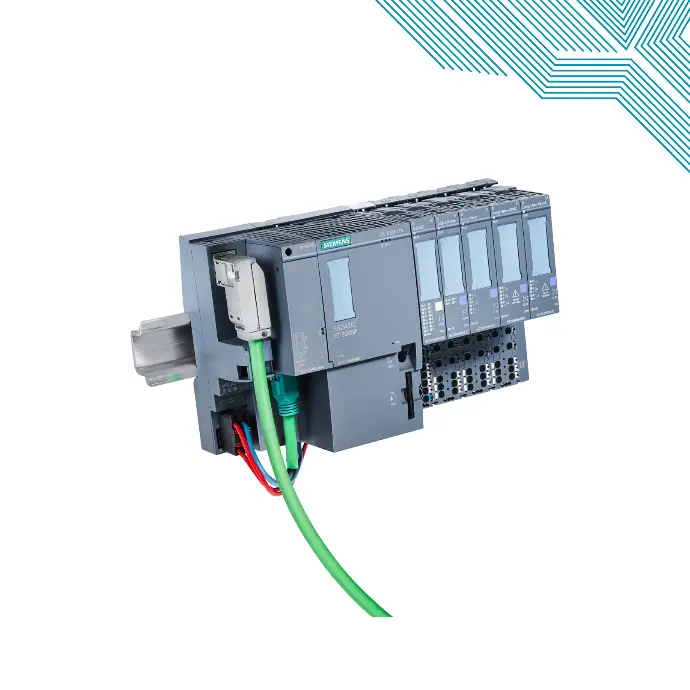

For ET 200SP, a comprehensive range of I/O modules, including fail-safe versions, is available:
- Digital input modules (DI), with color coding white
- Digital output modules (DQ), with color coding black
- Analog input modules (AI), with color coding light blue
- Analog output modules (AQ), with color coding dark blue
- Technology modules (TM), with color coding turquoise
- Communication modules (CM), with color coding light gray
- Special modules, with color coding mint green
- Motor starters as direct on-line starters (DS) and reversing starters (RS)
- Pneumatics
Apart from the standard type of delivery as an individual package, selected I/O modules and BaseUnits are also available in a pack of 10 units. The pack of 10 units enables the amount of waste to be reduced considerably, as well as saving the time of unpacking individual modules.
Compact design
- Modular configuration with up to 64 modules
- System-integrated self-assembling load group supply without power module via light BaseUnits
- Small size and highly flexible due to the modular design and comprehensive product range
- Up to 16 channels per module
- Permanent wiring
- Hot swapping: Module replacement without tools in RUN
- Operation with gaps
Flexible connection system
- Push-in terminals for cross-sections up to 1.5 mm2 with wire end ferrule, and up 2.5 mm2 without wire end ferrule
- BaseUnits for 1-wire or direct multi-wire connection
- Optimum accessibility for wiring due to spring release and measuring tap next to the conductor opening
- Flexible PROFINET connection via BusAdapter (RJ45, FastConnect, plastic or glass fiber-optic cables), also as integrated media converter
Safety Integrated
- Easy integration of fail-safe modules
- Easy F parameter assignment via software
- Group-by-group disconnection of non-fail-safe modules
High performance
- Isochronous PROFINET
- Internal data transfer with up to 100 Mbps
- Record analog values and output as of 50 µs
- Record digital values and output as of 1 µs
High-performance technology
- Modules for the functions Counting, Positioning, Weighing, Output cams, PWM, Force measurement, etc.
Energy efficiency
- Energy meter for recording electrical variables
- System-integrated PROFIenergy with interval substitute values
Advanced functions
- Configuration control:
application-based adaptation of the actual configuration via user software (option handling) - Time-based IO:
time stamping of the signals to the µs - MSI/MSO:
Simultaneous access to I/O data from up to 4 PLCs - MtM:
Direct data exchange between IO modules (Module-to-Module communication) - Oversampling:
n-fold acquisition or output of digital and analog signals within a PN cycle - Adaptation of measuring range:
increased resolution by adapting the measuring range to a limited section of a measuring range supported by the analog input module - Scaling of measured values:
permits the transmission of the analog value normalized to the required physical value as a REAL value (32-bit floating point)
Communication standards
- PROFINET IO
- PROFIBUS DP V0/V1
- ET connection for connecting the ET 200AL (IP67)
- IO-Link V1.1
- AS-Interface
- Modbus TCP
- Point-to-point (RS 232, RS 485, RS 422)
- Freeport
- 3964(R)
- USS
- Modbus RTU (master/slave)
CPU
- PROFINET connection with 3 ports
- IO controller and PN IO device
- Optional expansion as DP master/slave
- Also as fail-safe version and Open Controller
Labeling of I/O modules
- Meaningful labeling on the front of the I/O modules
- Module type in plain text including function class, e.g. "DI 8x24VDC HF"
- Article No.
- 2D matrix code with article and serial number
(with call via the "Industry Online Support" app, direct link to the support page of the module) - Hardware functional status and firmware version
- Suitable BU type for the respective I/O module
- Color code of the suitable color-coding plate
- Connection diagram
- Optionally expandable with
- Labeling strips
- Equipment labeling plate
