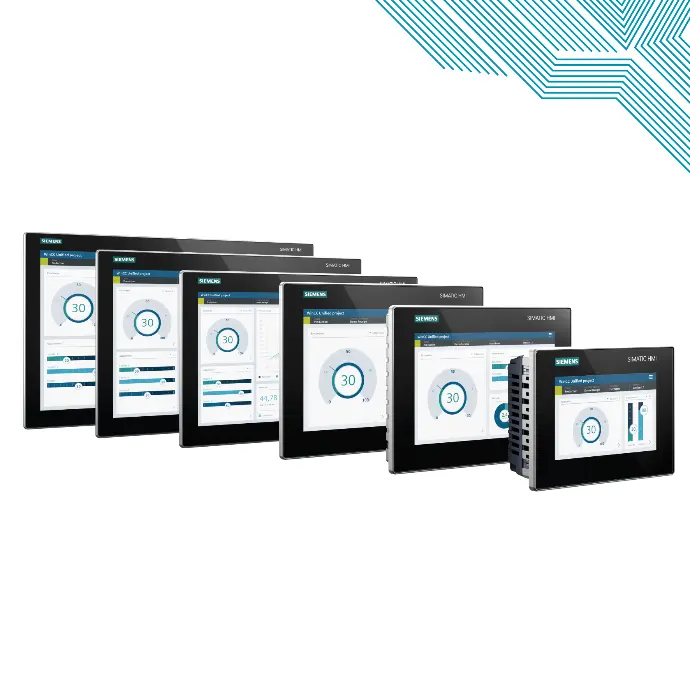

Siemens SIMATIC HMI Comfort Panels

Standard devices:


  • Excellent HMI functionality for demanding applications
  • Widescreen TFT displays with 4", 7", 9", 12", 15", 19" and 22" diagonals (all 16 million colors) with up to 40% more visualization area as compared to the predecessor devices
  • Integrated high-end functionality with archives, scripts, PDF/Word/Excel viewer, Internet Explorer, Media Player and Web Server
  • Dimmable displays from 0 to 100% via PROFIenergy, via the HMI project or via a controller
  • Modern industrial design, cast aluminum fronts for 7" upwards
  • Upright installation for all touch devices
  • Data security in the event of a power failure for the device and for the SIMATIC HMI Memory Card
  • Innovative service and commissioning concept
  • Maximum performance with short screen refresh times
  • Suitable for extremely harsh industrial environments thanks to extended approvals such as ATEX 2/22 and marine approvals
  • All versions can be used as an OPC UA client or as a server
  • Key-operated devices with LED in every function key and new text input mechanism, similar to the keypads of mobile phones
  • All keys have a service life of 2 million operations
  • Configuring with the WinCC engineering software of the TIA Portal engineering framework


Siemens SIMATIC HMI Comfort Panels


  • Excellent HMI functionality for demanding applications
  • Widescreen TFT displays with 4", 7", 9", 12", 15", 19" and 22" diagonals (all 16 million colors) with up to 40% more visualization area as compared to the predecessor devices
  • Integrated high-end functionality with archives, scripts, PDF/Word/Excel viewer, Internet Explorer, Media Player and Web Server
  • Dimmable displays from 0 to 100% via PROFIenergy, via the HMI project or via a controller
  • Modern industrial design, cast aluminum fronts for 7" upwards
  • Upright installation for all touch devices
  • Data security in the event of a power failure for the device and for the SIMATIC HMI Memory Card
  • Innovative service and commissioning concept
  • Maximum performance with short screen refresh times
  • Suitable for extremely harsh industrial environments thanks to extended approvals such as ATEX 2/22 and marine approvals
  • All versions can be used as an OPC UA client or as a server
  • Key-operated devices with LED in every function key and new text input mechanism, similar to the keypads of mobile phones
  • All keys have a service life of 2 million operations
  • Configuring with the WinCC engineering software of the TIA Portal engineering framework

    • Integral component of Totally Integrated Automation (TIA):
      Increased productivity, minimum engineering overhead, reduction in life-cycle costs
      • Can also be used in a vertical position where installation space is restricted (all touch devices)
    • Reduction of service and commissioning costs due to:
      • Short configuring and commissioning times through efficient engineering and fast project downloading
      • Automatic backup via optional SIMATIC HMI memory card
      • Long service life of the backlighting
      • Maintenance-free design
      • Data security in the event of a power failure
    • Simple and user-friendly representation of process values thanks to, for example, input/output fields, graphics, trend curves, bar charts, text and bitmaps
    • Graphics library is available with preconfigured screen objects
    • Can be used worldwide:
      • 32 online languages (incl. Asian and Cyrillic character sets) can be configured
      • Up to 32 languages can be switched online
      • Language-dependent texts and graphics
    • Standard hardware and software interfaces for increasing flexibility and for saving on additional hardware:
      • PROFIBUS and PROFINET onboard (with 7" and above, two PROFINET ports with integrated switches, with 15" and above additional interface with gigabit support)
      • Two SD card slots for storing archives, user data and for automatic backup
      • USB host interfaces for connecting USB flash drive, keyboard, mouse and printer
      • With 7" and above, audio out interface for use with the integrated media player
      • Standard Windows storage formats (CSV) for archives and recipes permit further processing with standard tools (e.g. Microsoft Excel)
      • Sm@rtServer for remote access between different SIMATIC HMI systems or mobile end devices

6AV2124-0....-....

The SIMATIC HMI Comfort Panels can be used wherever machines and plants are controlled and monitored locally - in production, process and building automation alike. They may be used in all kinds of industries and applications. They are ideally suited to demanding visualization tasks, and due to the integrated functionality, the right device can be selected for every application.
